Products

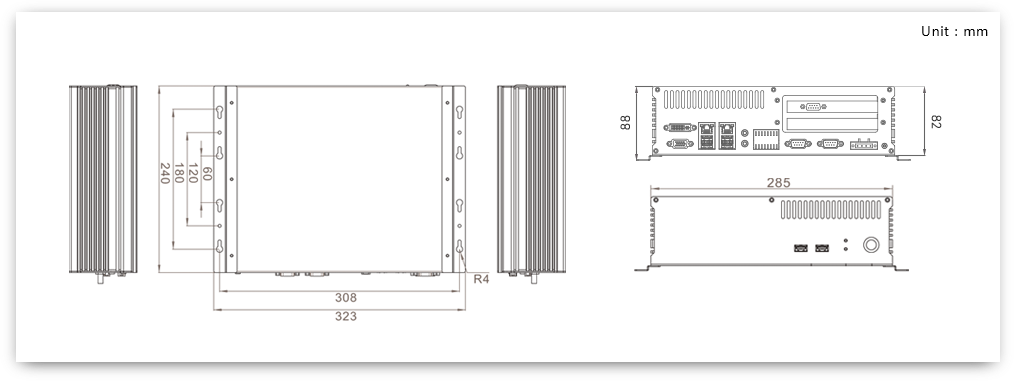

Mounting Dimension
Specifications

Processor

Intel Core i5 3470T dual-core processor


Memory

4G, Max 16G


Disk

Industrial standard SSD


Monitor

Powerful capacity of computing and graphics processing, supporting VGA and DVI interfaces and asynchronous and synchronous display


LAN

Two 2Kbps LAN


USB

USB3.0 4; USB2.0 2


Interface

One for Lambda; two for RS232


Structure

Full-closure design, water-proof and dust-proof


Mounting

Mounted on the desk or in the wall


Indicator

Indicators for power supply, and SSD


Cooling

Fanless, built-in copper module to facilitate quick head dissipation


Power input

Over-current protection, Over-voltage protection and avoiding reverse connection


Widely applied in……
