CNC Specifications

Other Controls
Three axes with multiple cylinders

Hardware Specifications

CPU
ARM11

RAM
128M

FLASH
256M

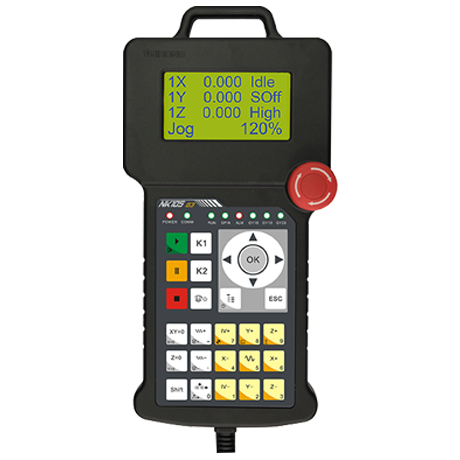

Monitor
128*64LCD display module

I/O
Standard

Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

Spindle

Multiple Gears
8 gears of spindle speed

Tool Management

Tool Magazine Type
Linear tool magazine

Tool Measurement Mode
Auto measurement,Manual measurement

Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

Compensation

Compensation
Blacklash compensation

Toolpath Program

Supported
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt

Operations

WCS Setting
Supporting WCS G54-G59

Processing Technology
Array function,Cycle machining

Convenitent Operations
Handwheel guide, Breakpoint resume, Tool selection

High-speed High-precision Optimization

Interpolation Algorithms
T-type and S-type algorithms

Software Language

Chinese, English, Polish, Vietnamese

Reliability & Safety

CNC Software Alarm
Alarms of program error, operation error, over-travel error, PLC error and IO communication error
