SL-030










Products

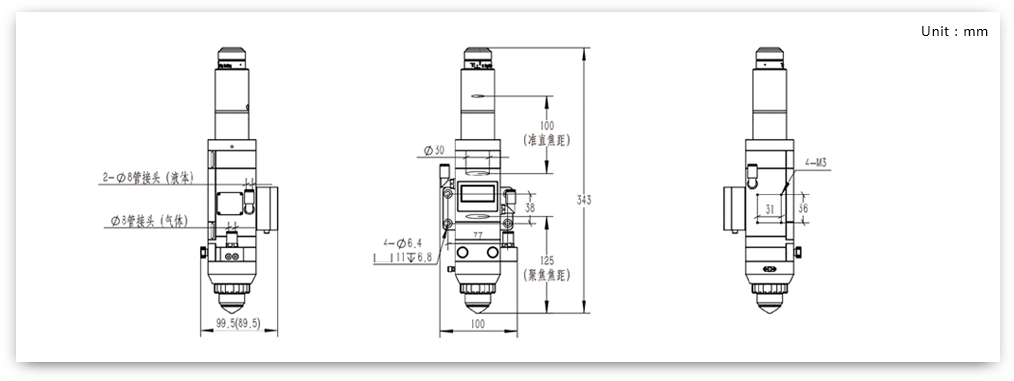

Mounting Dimension
Specifications

Fiber adapter type

QBH


Wave length range

1020-1090nm


Rated power

500/1000W


Clear aperture

28mm


Focalization range

14mm(-9~+5)


Adjustment precision of focalization

0.02mm


Adjustment precision of focus centering

0.02mm


Specification of protective lens

φ25.4mm x 4mm


Protective lens bearing

≤20bar


Laser spot diameter

50-200μm


Mass

2Kg

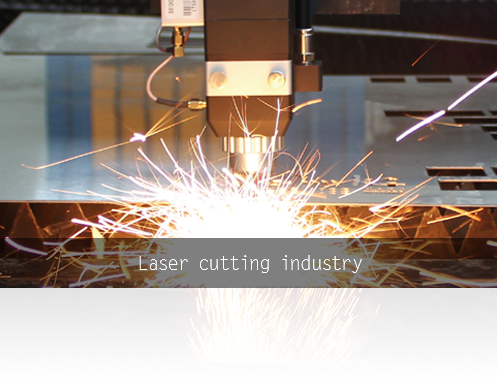

Widely applied in……
