Fieldbus type of laser cutting control system, Weihong LS6000M is based on the new platform of PHOENIX with better portability and compatibility, powerful and practical secondary development, which offers great support to the upgrade of high power laser cutting machines.

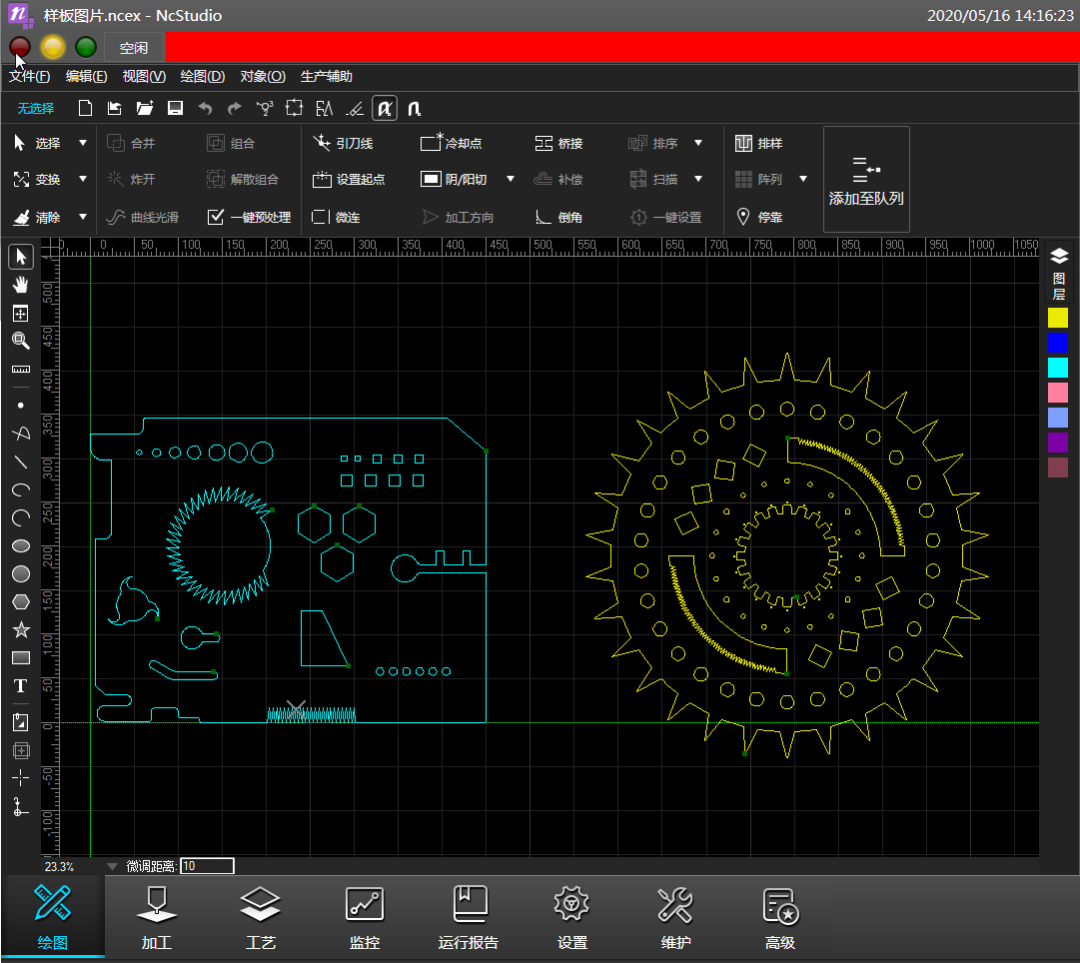

一、Brand new human-computer interaction
Optimized operation system
Well-arranged function keys
Efficient debugging and processing
☆Machining process:
1 Machining mode selection: flexible machining/batch machining
2 Program Preparation: Programed in system/file import directly
3 Confirm the processing: new process/ import from library
4 Start processing: check the processing track and monitor the peripheral equipment
5 Generate machining reports/sheets

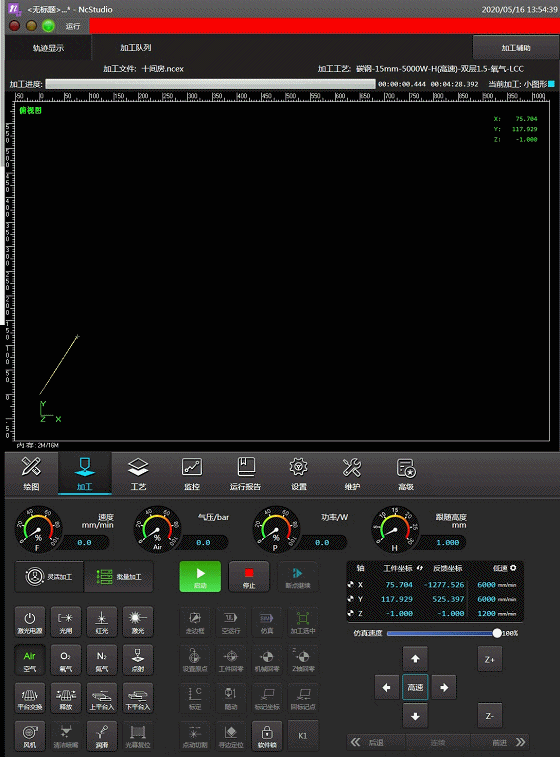

>>> Flexible machining mode
With same way of operation as that of LS3000 control system, LS6000M model effectively reduces the learning cost and files can be processed directly after drawing in the graphics section.

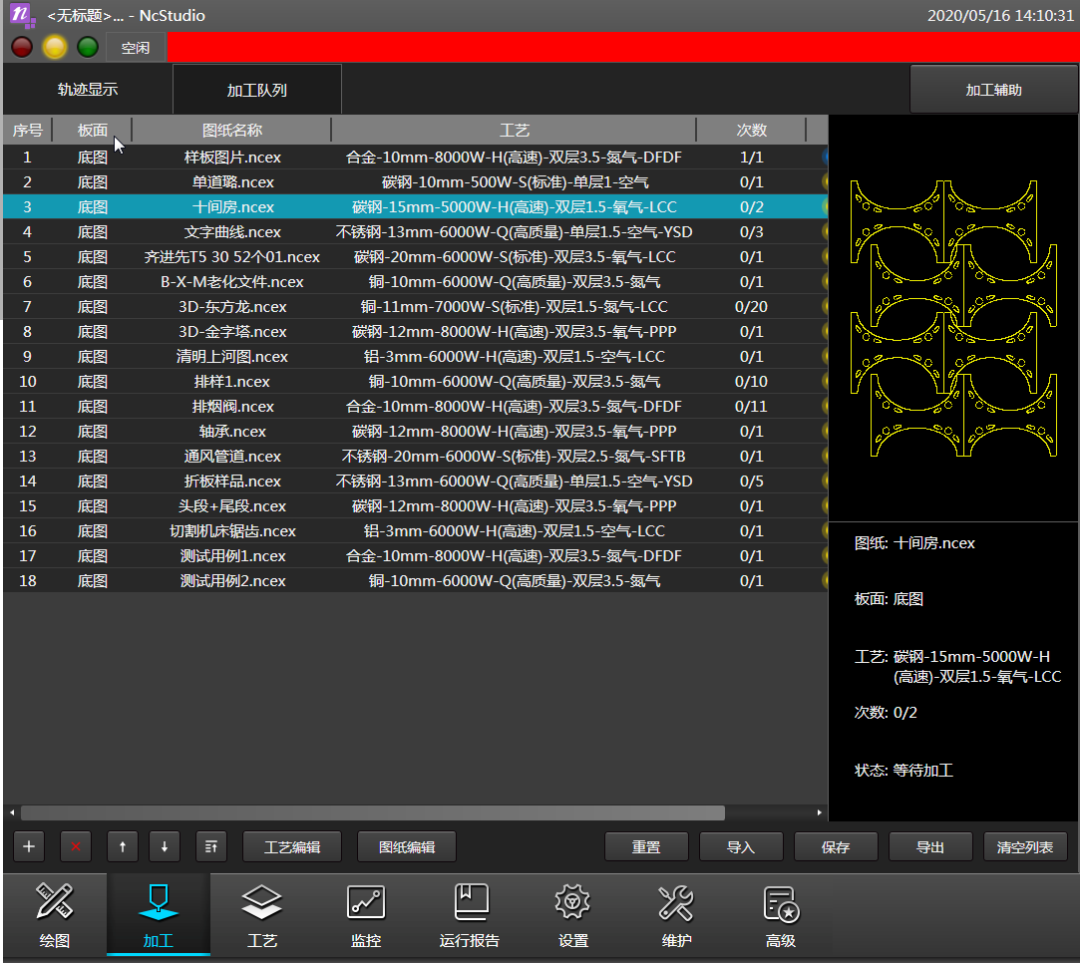

>>> Batch processing mode
Support multi-file processing, with functions of processing according to the list, graphics preview, graphics drawing, and file modification.
Process programing: Modify the files in the processing list in real time.
Graphics Drawing: Select one file from processing list and click Graphics Drawing to quickly modify the CAM and graphic properties of the processing file.
二、Powerful function, release the potential of machine tool

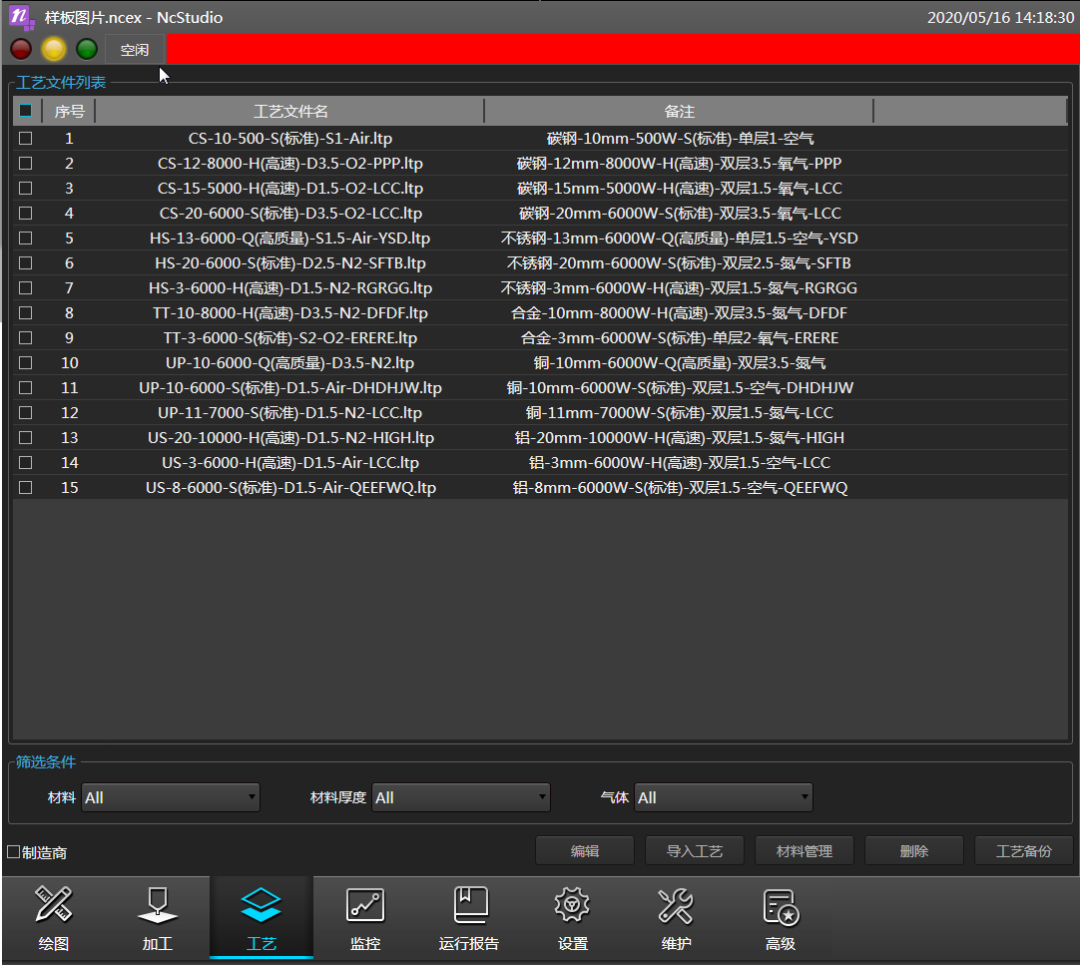

1 Management of Processing Library
Better management of processing files
Processing file is editable and can be saved.
Existing files can be screened and saved as a backup.

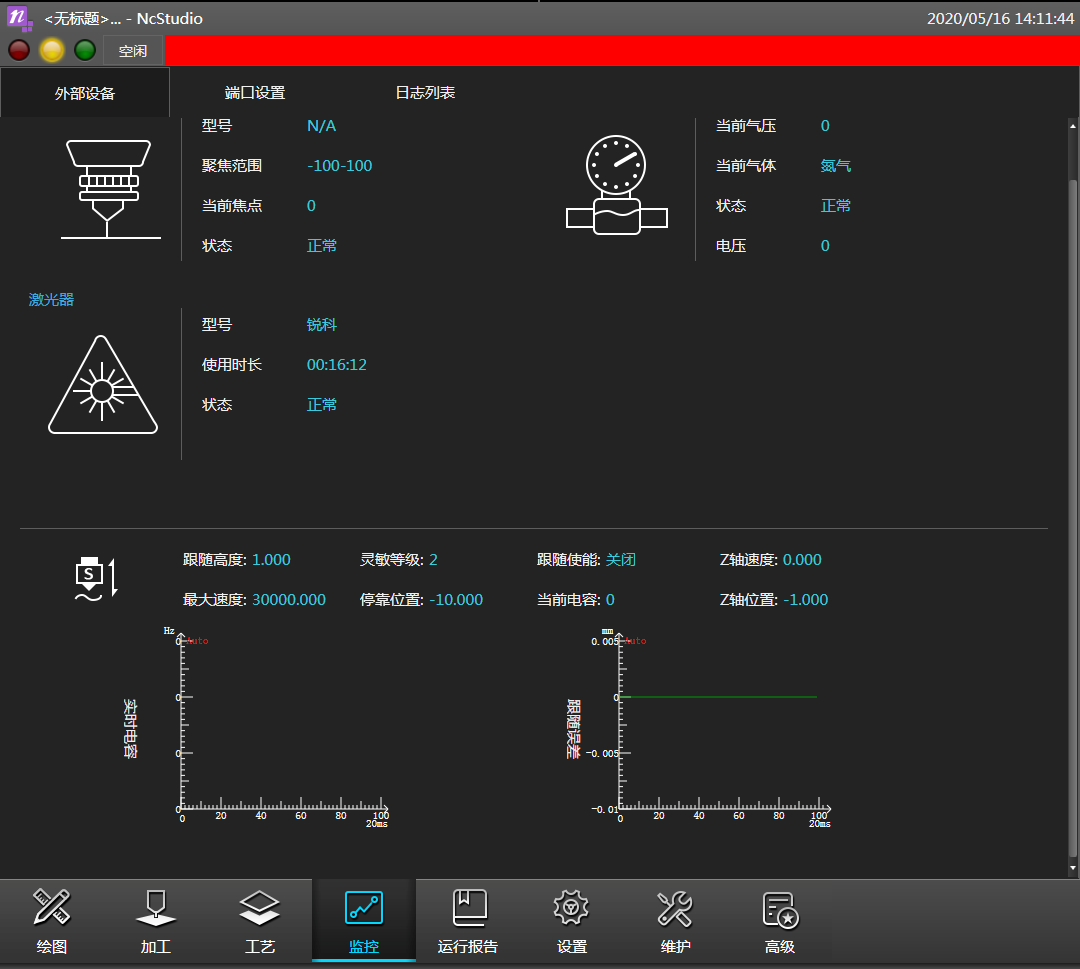

2 Real-time Monitoring of Machine Tool Accessories
Real - time monitoring of cutting head, auxiliary gas, laser, follow-up control
Modules for monitoring can be added according to subsequent requirements.

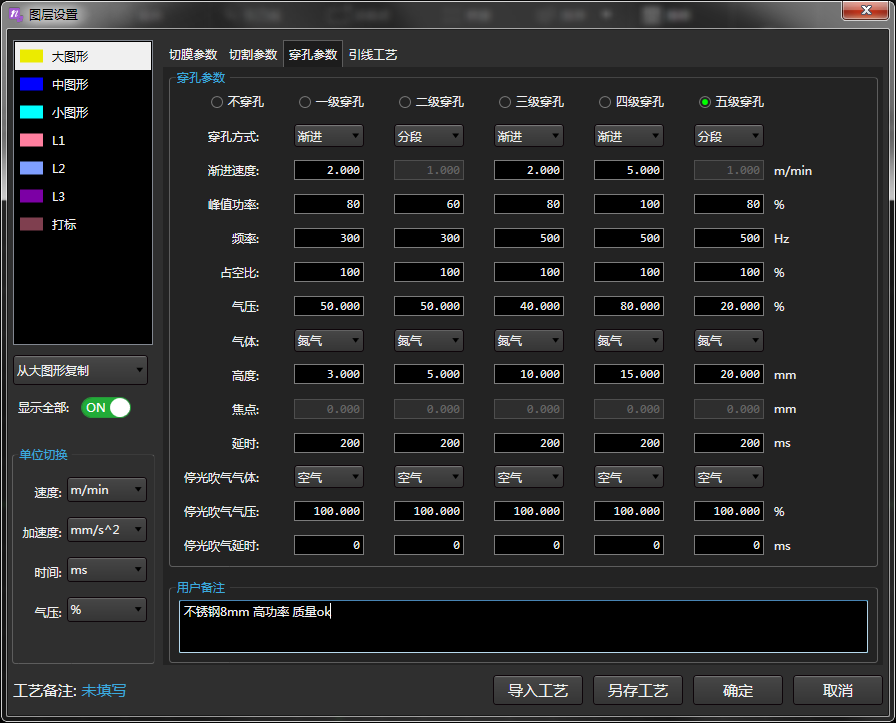

3 Five-segment Piercing
By using five-segment of piercing, it effectively ensures the performance of thick sheet cutting with high power.

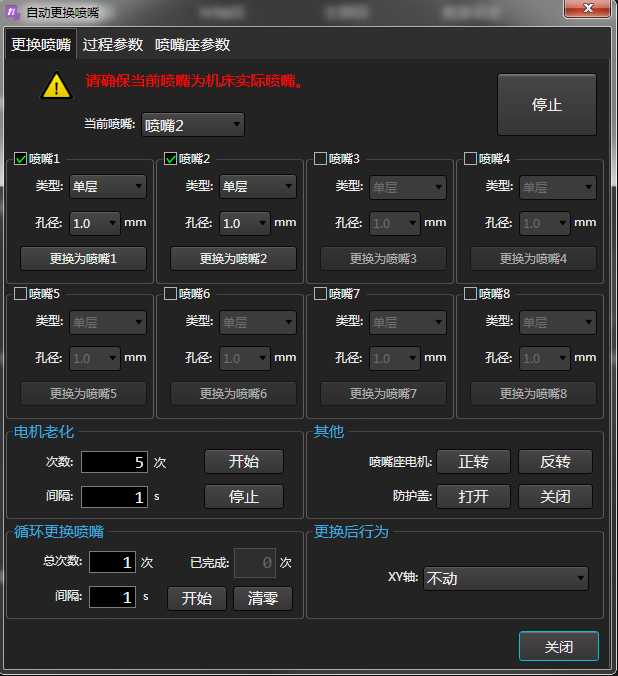

4 Automatic nozzle replacement
For different material’s processing, it supports automatic nozzle replacement.

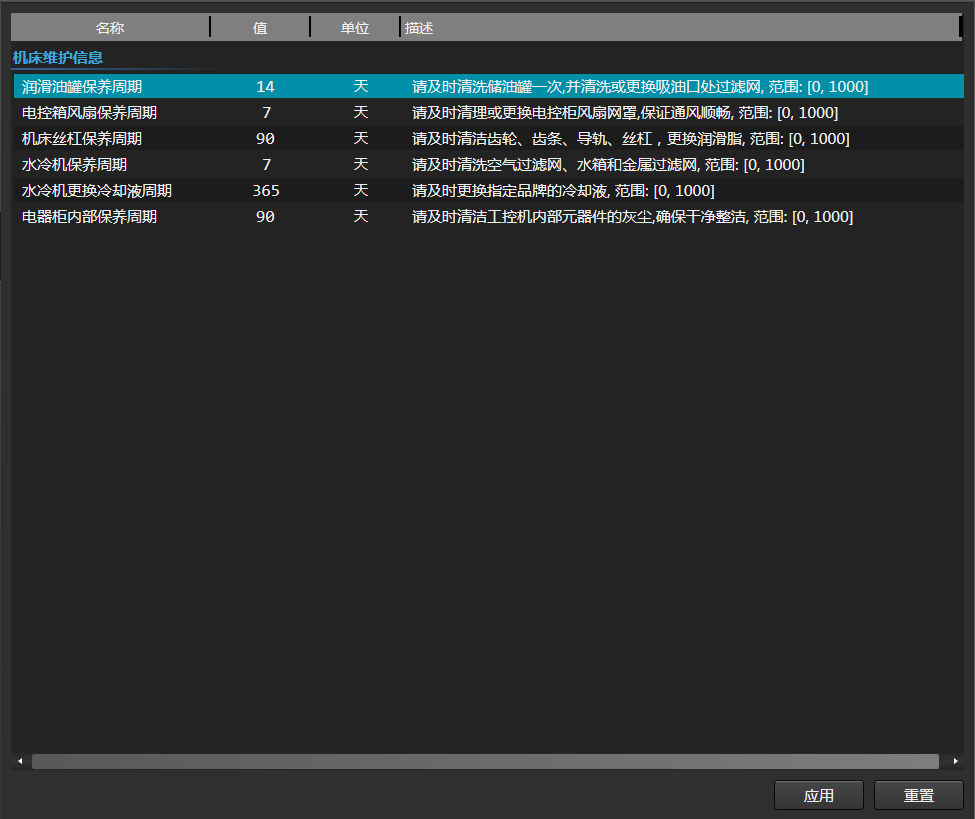

5 Reminder Setting for Machine Maintenance
Users can set reminder time for their own machines’ maintenance
Based on the reminder time, machines can be maintained regularly

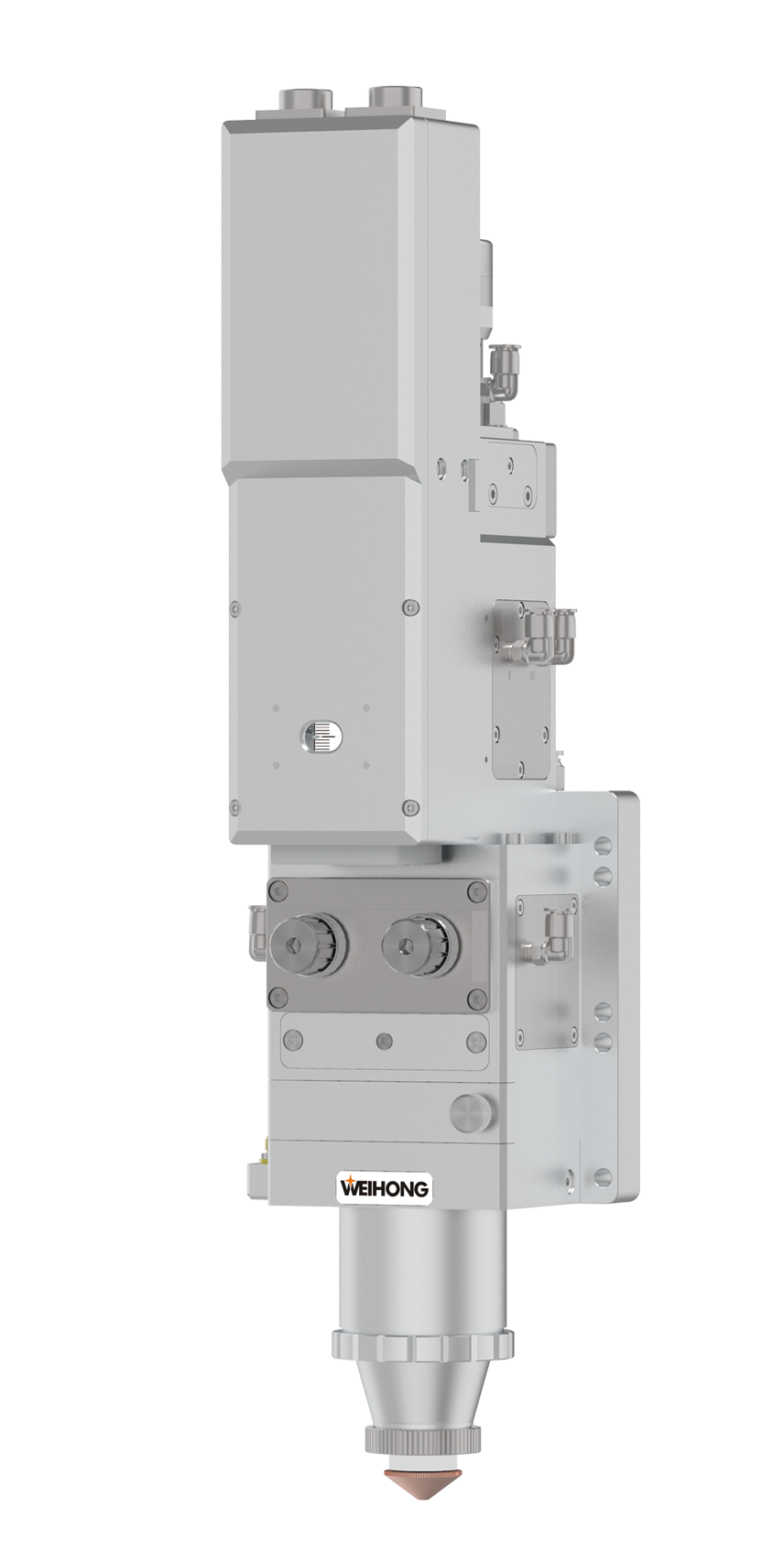

6 Weihong Intelligent Laser Cutting Head
Equipped with Weihong SL-060A series laser cutting head
Automatic focus, multiple lens protection, compact structure
Support EtherCAT bus
In addition, it is equipped with EX37A board
To match with ProCutter2.0 cutting head
One-click Cutting, Parts Library, etc.
More Practical Functions Await Your Discovery.
Weihong LS6000M, Fieldbus Type of CNC Controller
Best Choice for High-power Laser Cutting
