Item

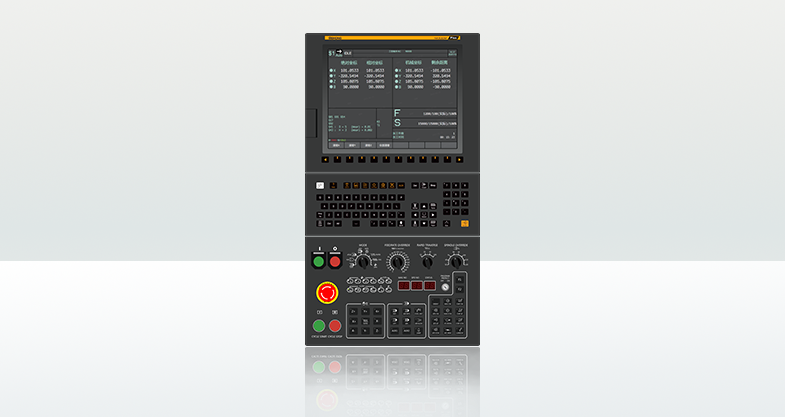

FE30 Series

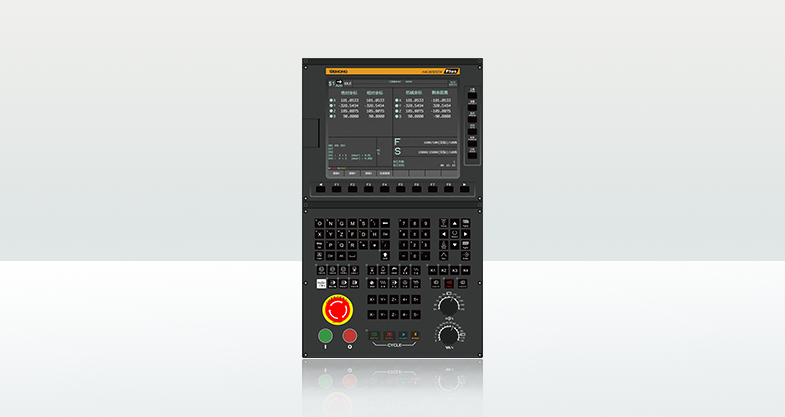

FE30MA

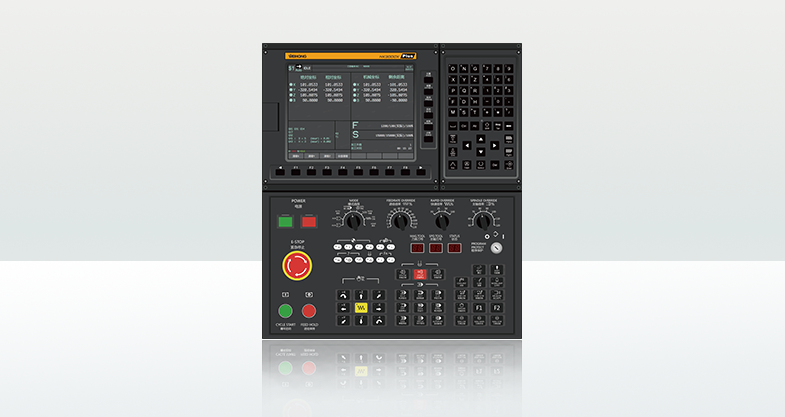

FE30MB

Product specifications

Maximum main system axis group (optional)

1(2)

2

Maximum number of PLC axis groups

1

1

Maximum number of control axes

10

13

Standard number of control feed axes (standard)

6

8(16)

Maximum number of control feed axes (optional)

6

9

Maximum number of spindles

4

4

Maximum number of synchronous control axes (single axis group)

4

4

Number of multi-channel function groups (optional)

4

4

Block processing time

3000

3000

Function

High-speed and high-precision algorithm-five-axis function

Acceleration trapezoidal algorithm

●

●

Faulty point handling

●

●

Feedforward compensation function

●

●

Short line segment speed smoothing (adaptive)

o

●

Trajectory preprocessing function

o

●

Multiple sets of processing conditions

●

●

RTCP

-

O

HPCS-HPPS

●

●

HST algorithm

●

●

Inclined surface processing

-

O

3D tool compensation

-

O
