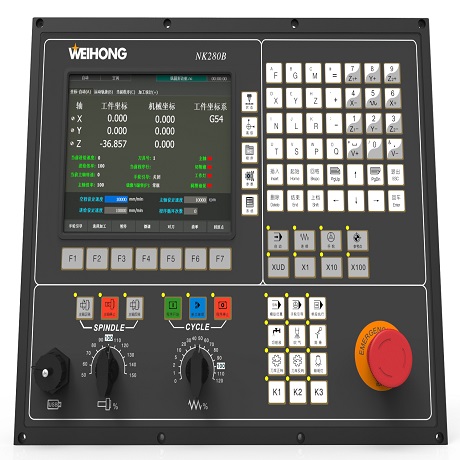

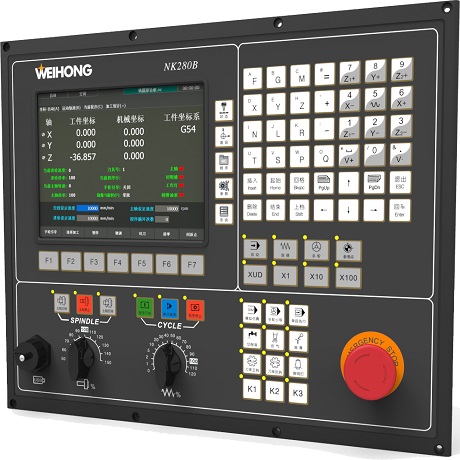

NK280B






产品描述图1
产品描述图2
产品描述图3
Product Configuration

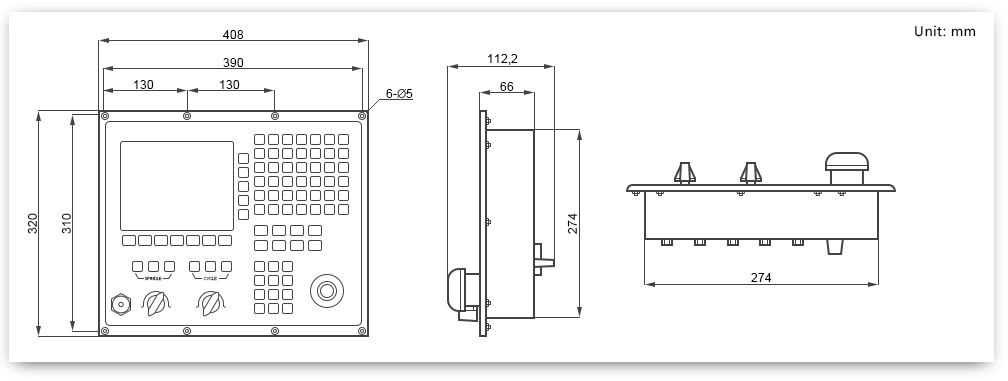

Mounting Dimension
Specification parameters

CNC Specification

CPU
3 axes

Hardware Specifications

CPU
ARM11

RAM
128M

CPU Clock Speed
600M

Flash
256M

Monitor Dimension
8 inches LED

Monitor Resolution
800*600

I/Os
Standard: 16/16; Extended terminal board: 10/8 (cascade connection)

Performance Indicator
The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.

Spindle

Analog Voltage Output
0-10V

Tool Management

Tool Magazine Type
Linear tool magazine, Disk-type tool magazine

Tool Measurement Mode
Auto measurement, Manual measurement

Tool Measurement Type
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change

Compensation

Compensation Type
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation

Communication

Internet(Ethernet)
LAN communication, Front USB interface, Two-way transmission between the system and PC

Toolpath Program

Supported File Format
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt

Operations

WCS Setting
Supporting WCS G54-G59

Processing Technology
Array function, Mirror&rotate, Multi-layer machining, Cycle machining

Convenient Operations
Handwheel guide, Breakpoint resume, Tool selection

High-speed High-precision Optimization

Interpolation Algorithms
T-type, S-type

Language

Chinese,English

Reliability & Safety

CNC Software Alarm
Alarms of program error, operation error, over-travel error, PLC error and IO communication error

<

Widely applied in…

Succesful Cases




Mold milling machine
Rosewood engraving machine
Jade carving machine
Advertising mini words engraving machine
Glass edge grinding machine
