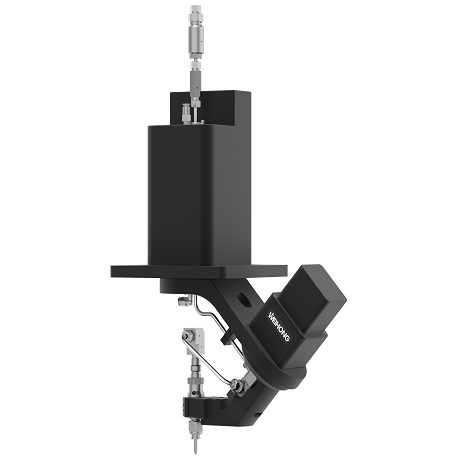

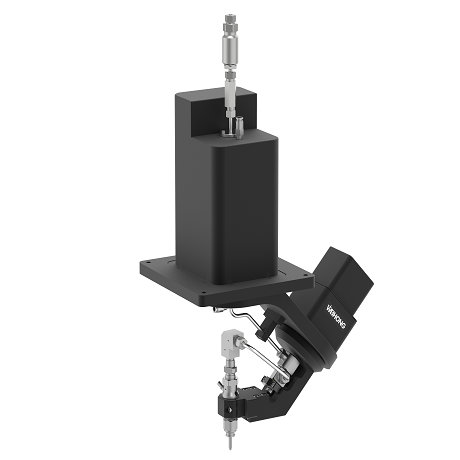

AC Five-axes Cutting Head






产品描述图1
产品描述图2
产品描述图3
产品描述图4

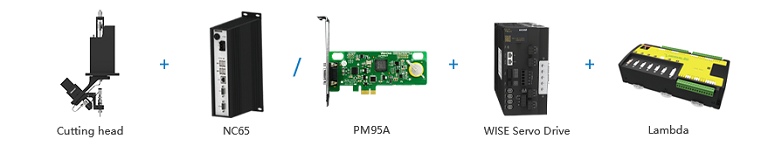

  • Product Configuration

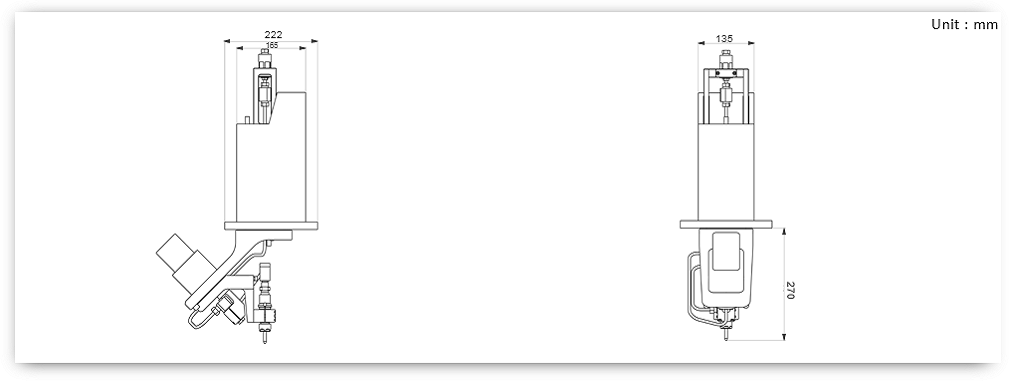

  • Mounting Dimension

Specifications

A-axis rotating range

±70°

C-axis rotating range

Infinite

Position precision

1.5'

Max rotational speed

50RPM

Cutting precision at fixed point

±0.05mm

Rotating radius

261mm

Widely applied in…

Successful Cases



All-in-one flat and circular engraving machine
Rosewood engraving machine
Mold milling machine
3-Z milling machine
