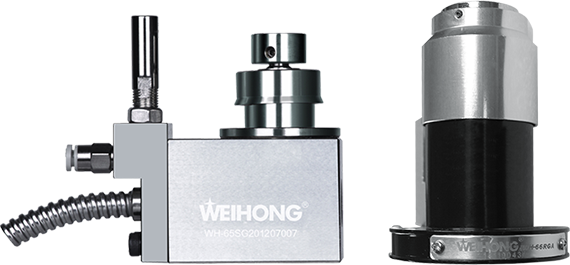

WEIHONG Tool Sensor
It can be applied in machining center, CNC milling machine, woodworking router machine, stone engraving machine, advertisement engraving machine, etc.

specification parameter

Project WH-50R2PA WH-100RGA
Base Profile & Dim. Round Φ50mm Square 72mmx50mm
Repeated Positioning Accuracy 0.002mm 0.002mm
Blow Function Available Available
Voltage DC10-30V DC10-30V
Current Below 20mA Below 20mA
Required Tool Dia Below 20mA Below 20mA
Ambient Environment -25℃~70℃ -25℃~70℃
Measurement Speed 50~200mm/min 50~200mm/min
Base Open Hole Dia Φ4.4mm Φ6mm
Physical Height 65MM 90MM
Tensile Strength of Power & Signal Line 20N 20N
Air Tube Dia Outer 4mm/Inner 2.5mm Outer 4mm/Inner 2.5mm
Len. of Power & Signal Line 1.5M 1.5M
Over-travel Protection Unavailable Available
Signal Type Normally closed Normally closed
Bushing Len 1M 1M
Machanical Travel 5mm 5mm
Tool Sensor Signal Line Green White Green White
Over-travel Signal Line Unavailable Red Yellow
WEIHONG MPG Handwheel
It can be applied in woodworking router machine, machining center, CNC milling machine, CNC turning machine, etc.

specification parameter

Definition WH-06 Future(for 5-axis) Future(for 6-axis)
5V~15V Red Transparent Brown Blue&White Brown Blue&White
A Yellw Orange Orange
B White Pink Pink
NC X X X
NC X X X
X1 Light green/black Brown&white Brown&white
X10 Light green/black Red&White Red&White
X100 Transparent/black Red&Black Red&Black
Select 4th Axis Dark blue Gray Gray
Select 5th Axis X 绿白 绿白
GND Black,purple,light purple Orange &white,red Orange&white,red
Select 6th Axis X X Green&black
Select Z Axis Light blue Purple Purple
Select Y Axis Orange Blue Blue
Select X Axis Brown Cyan Cyan
The number of axes supported by handwheel Four axes Five axes Six axes
The cable length of handwheel 5M 3M 3M
